EPSON EB-695Wi

EPSON EB-695Wi

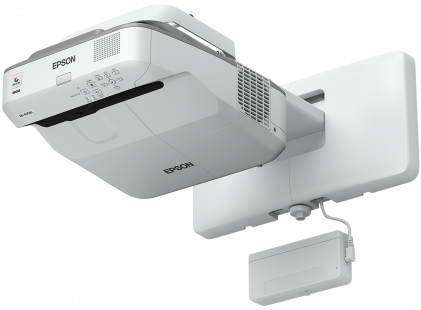

Interactive finger-touch projector

HD-ready innovative teaching solution with a large scalable screen size of up to 100 inches, designed to enhance collaborative learning.

Key Features

  • Up to 100-inch display and outstanding quality: HD-ready WXGA resolution with Epson 3LCD technology
  • Dual-pen annotation: Two users can annotate at once using the included pens
  • Reliable: Improved reliability and a longer lamp life
  • Multi-screen interactivity: Combine two projectors to create one large interactive display
  • Wireless Connectivity (Optional): Allows content to be shown from a range of devices

Description

Projection System: 3 LCD Technology
LCD Panel: 0.59 inch with D9

Colour Light Output: 3,500 Lumen- 2,900 Lumen (economy)
White Light Output: 3,500 Lumen – 2,900 Lumen (economy) in accordance with ISO 21118:2012
Resolution: WXGA, 1280 x 800, 16:10
High Definition: HD ready
Aspect Ratio: 16:10
Contrast Ratio: 14,000 : 1
Light source: Lamp
Lamp: 250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)
Keystone Correction: Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Processing: 10 Bits
2D Vertical Refresh Rate: 100 Hz – 120 Hz
Colour Reproduction: Up to 1.07 billion colours
Projection Ratio: 0.28 – 0.37:1
Zoom: Digital, Factor: 1 – 1.35
Lens: Optical
Image Size: 60 inches – 100 inches
Projection Distance Wide: 0.4 m ( 60 inch screen)
Projection Distance Tele: 0.6 m ( 100 inch screen)
Projection Lens F Number: 1.6
Focal Distance: 3.7 mm
Focus: Manual
Offset: 5.8 : 1
USB Display Function: 3 in 1: Image / Mouse / Sound

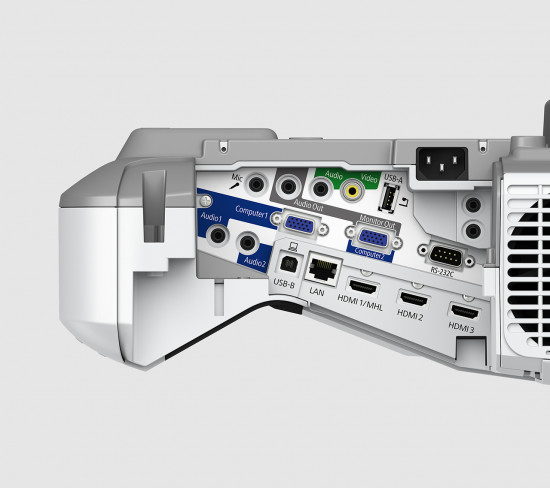

Interfaces: USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Sync. in, Sync. out
Epson iProjection App: Ad-Hoc / Infrastructure
Security: Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
Features: AV mute slide, Auto calibration, Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Interactive, Long lamp life, MHL audio/video interface, Microphone input, spectextoptionfeaturesprojectorpcinteractive, PC free annotation, Split-Screen-Function
Interactivity: Yes- pen
Video Colour Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard
Projector control: via: AMX, Crestron (Network), Control4
Energy Use: 354 Watt, 310 Watt (economy), 0.39 Watt (standby)
Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions: 367‎ x 400 x 149 mm (Width x Depth x Height)
Product weight: 5.9 kg
Noise Level: Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A)
Temperature: Operation 5° C – 35° C, Storage -10° C – 60° C
Humidity: Operation 20% – 80%, Storage 10% – 90%

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software: Easy Interactive Tools, Epson Projector Management Software, EasyMP Multi PC Projection
Options: Air filter, Connection and control box, Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), USB extension cable, Wireless LAN unit
Compatible Operating Systems: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Loudspeaker: 16 Watt
What’s in the box: Interactive pens, Main unit, Pen tray, Power cable, Quick Start Guide, Remote control incl. batteries, USB cable, User Manual (CD-ROM), Wall hanging bracket, Warranty card
Room Type / Application: Collaboration space / Classroom
Positioning: Wall Mounted
Colour: White / Grey
TCO Certified: Yes

Warranty: 60 months Carry-in or 8,000 h, Lamp: 60 months or 1,000 h
